Condensing horizontal steam boiler

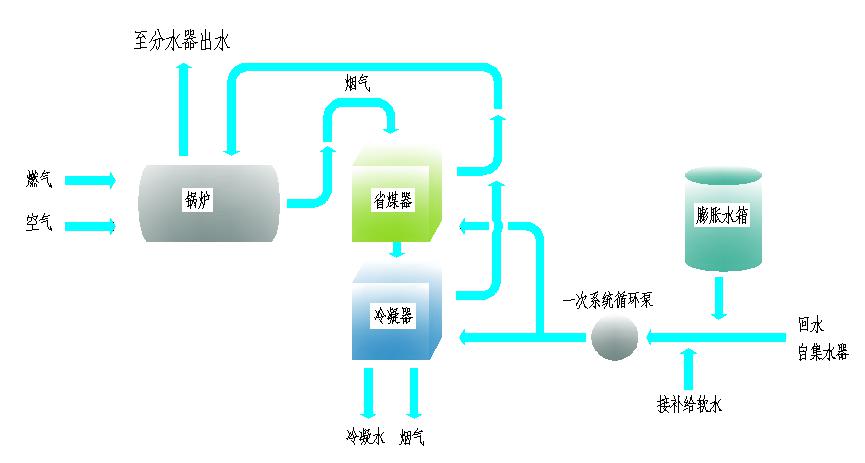

Boiler system: deaerating feed model (105 ℃ feed)

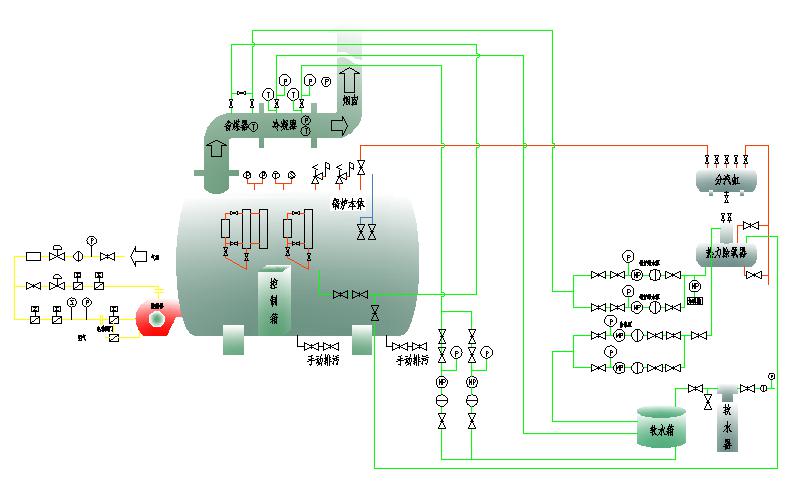

Diagram of boiler room system

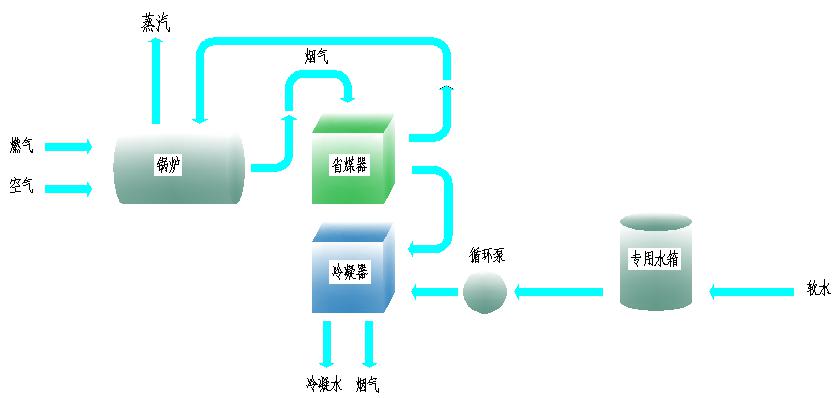

Boiler system: direct feed model (20 ℃ feed)

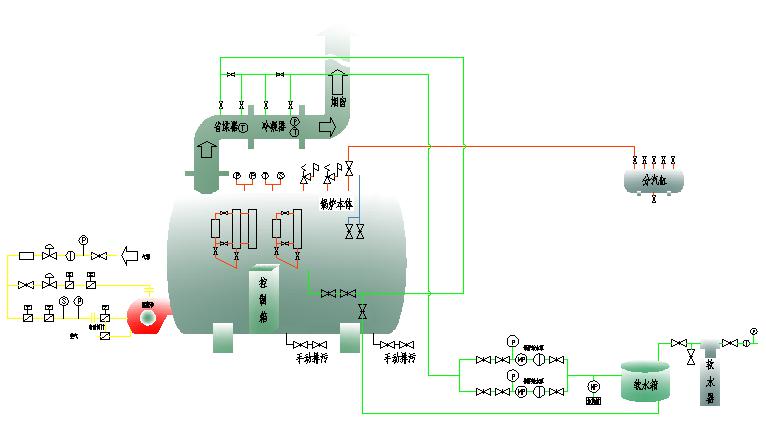

Diagram of boiler room system

1-6t/h steam boiler WNS1-6t/h steam boiler

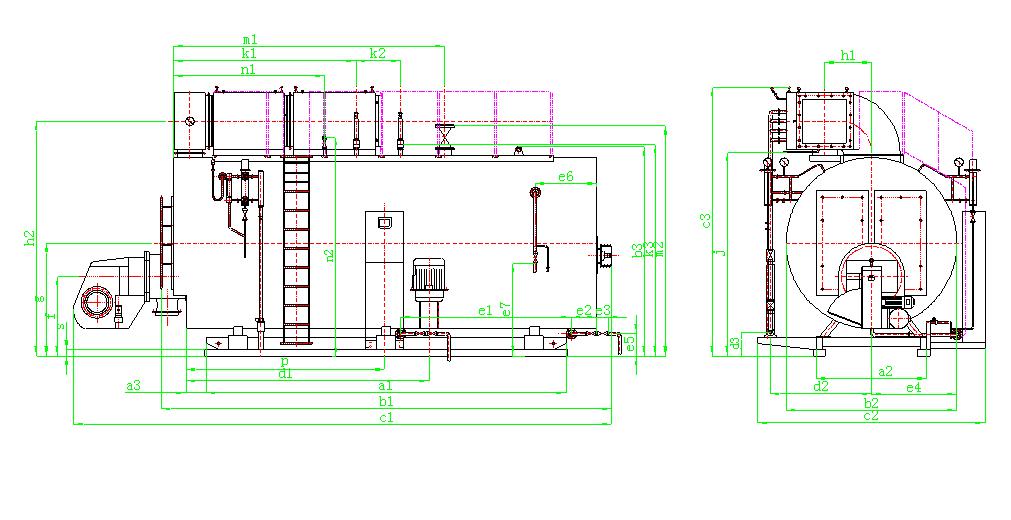

Length (mm)	Foundation	Base			Transportation clearance			Max overall dimension			Water inlet			Burner center	Equipment center	Condensate drain outlet
Evaporation capacity	s	a1	a2	a3	b1	b2	b3	c1	c2	c3	d1	d2	d3	f	g	j
2t/h	100	3230	1650	275	4246	2050	3015	4974	3010	3420	2745	1150	375	980	1400	2474
3t/h	100	3700	1700	275	4720	2150	3263	5800	2900	3530	3035	1280	395	1030	1450	2545
4t/h	100	4140	1800	260	5194	2345	3510	6379	3150	3720	3220	1380	375	1115	1550	2758
5t/h	100	4500	2000	495	5913	2580	3860	7278	3295	3929	3650	1550	380	1195	1650	2955
6t/h	100	4500	2000	495	5913	2580	3860	7278

Length (mm)	Manual sewage draining exit				Continuous drainage outlet		Relief valve connector			Main steam interface		Assistant steam interface		Chimney breast		Control cabinet
Evaporation capacity	e1	e2	e3	e4	e5	e6	k1	k2	k3	m1	m2	n1	n2	h1	h2	p
2t/h	400	240	1000	356	—	—	1750	—	2645	2200	2815	1300	2685	555	2729	2500
3t/h	400	240	1050	356	—	—	1750	—	2737	2200	2912	1300	2762	600	2899	2600
4t/h	400	240	1050	355	935	1390	1700	450	2924	2750	3154	1250	3004	650	3124	2800
5t/h	400	240	1200	356	1050	1350	2070	600	3139	3270	3404	1670	3204	720	3395	2800
6t/h	400	240	1200	356	1050	1350	2070	600

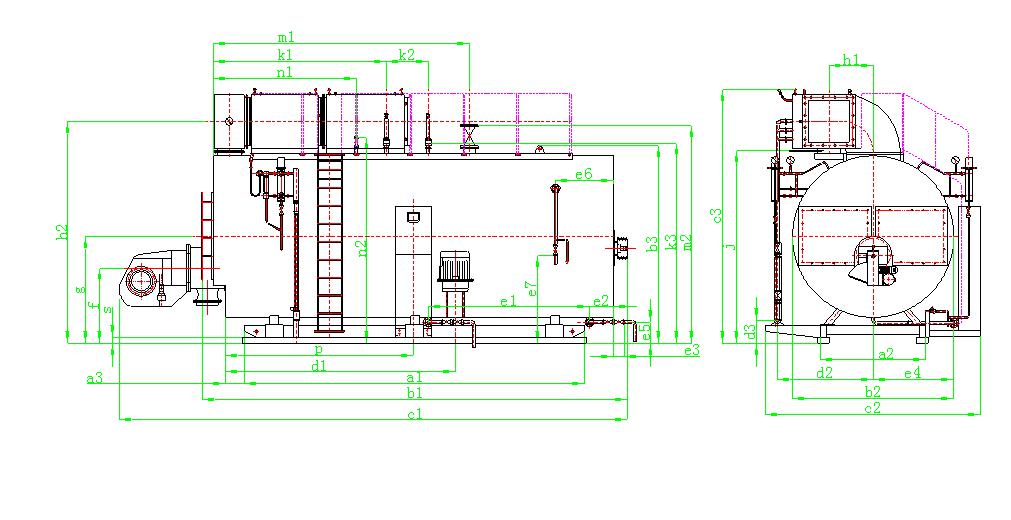

8-20t/h steam boiler WNS8-20t/h steam boiler

Length (mm)	Foundation	Base			Transportation clearance			Max overall dimension			Water inlet			Burner center	Equipment center	Condensate drain outlet
Evaporation capacity	s	a1	a2	a3	b1	b2	b3	c1	c2	c3	d1	d2	d3	f	g	w
8t/h	100	5690	1750	315	7133	2700	3310	8515	3600	4250	3640	1600	380	1260	1785	3255
10t/h	100	5690	1750	315	7133	2700	3310	8515	3600	4490	3450	1600	380	1260	1785	3240
12t/h	400	5300	2500	825	7213	3000	3740	8618	3895	5106	3750	1750	732	1480	2080	3710
15t/h	400	5900	2140	425	7365	3200	3908	9416	4035	5142	3450	1850	782	1560	2150	3866
20t/h	400	6460	2220	345	7815	3620	4360	10329

Length (mm)	Manual sewage draining exit					Continuous drainage outlet		Relief valve connector			Main steam interface		Assistant steam interface		Chimney breast		Control cabinet
Evaporation capacity	e1	e2	e3	e4	e5	e6	e7	k1	k2	k3	m1	m2	n1	n2	h1	h2	p
8t/h	—	400	240	1350	355	970	1485	2890	700	3426	4290	3641	2390	3491	740	3711	3140
10t/h	2720	400	240	1350	355	970	1485	2890	700	3426	4290	3641	2390	3491	740	3801	3140
12t/h	2700	400	260	1500	322	850	1600	2770	700	3875	4170	4140	2270	3940	790	4341	3000
15t/h	2850	400	260	1610	292	850	1850	2920	700	4058	4320	4308	2420	4108	795	4426	3000
20t/h	2850	400	260	1650	340	850	2100	2770	700

Structural features

※ Compact structure, attractive appearance.
※ Integrated finned tube economizer and independent vertical condenser, convenient for maintenance.
※ Reasonable design of heating surface can effectively control resistance of smoke.
※ Variable frequency water supply and control technology can guarantee condensation rate of vapor in smoke.
※ Adopts special steel, thus it has long service life.
※ Combination of PLC, touch screen and additionally mounted button form manual and automatic intelligent control system.
※ It is equipped with all-around online help, multilevel Chinese pop-up menu and breakdown maintenance manual.
※ All-around safety interlocking protection function can ensure safe and efficient operation of boiler.
※ Sufficient PLC reserved port and modular expanding module can realize group control, remote control and building control.
